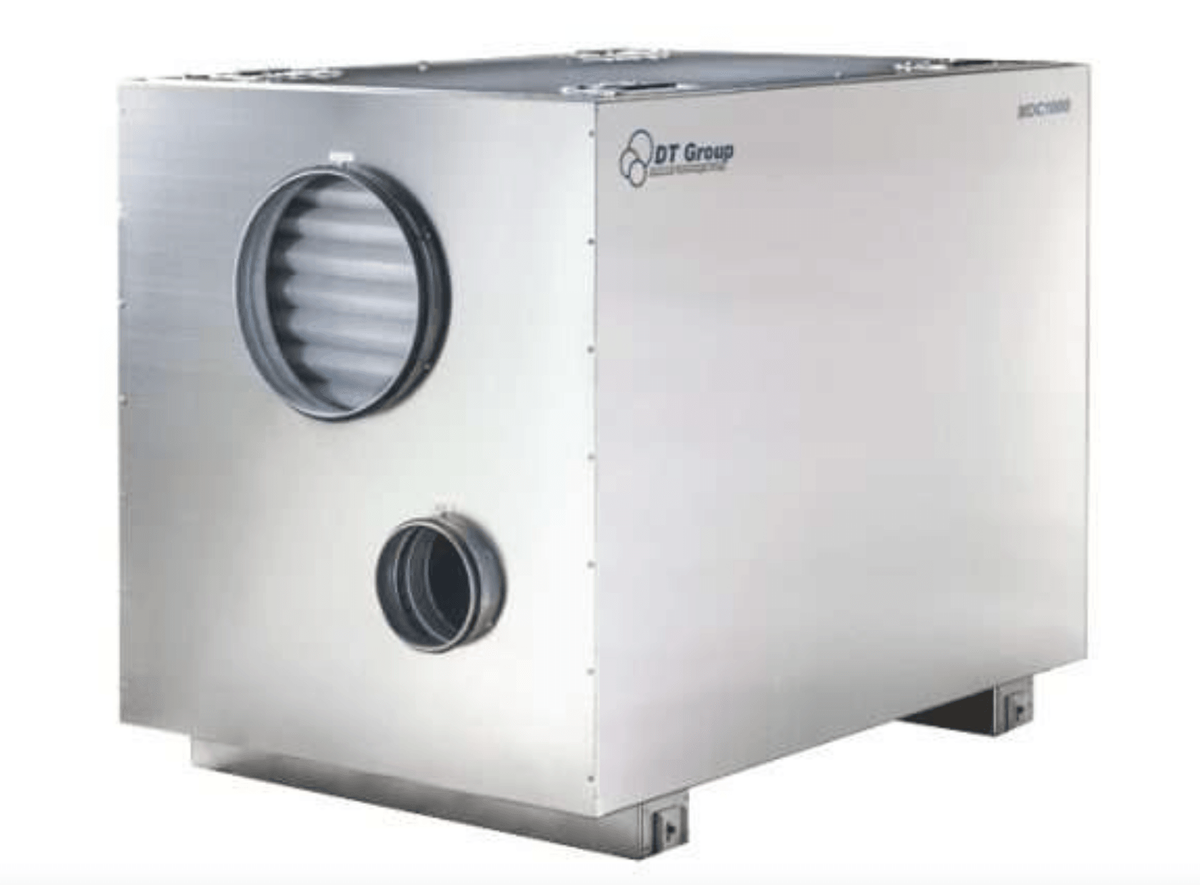

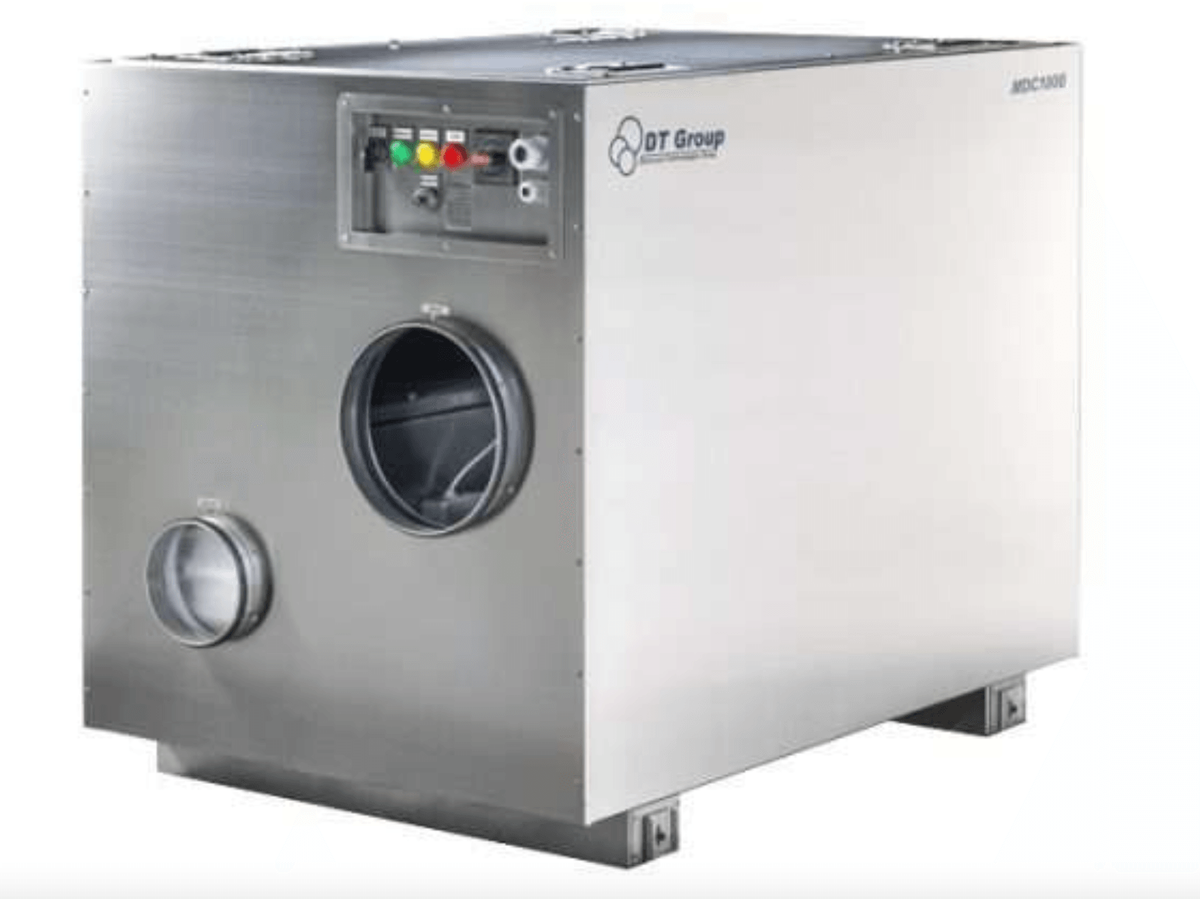

DT Group - Industrial Desiccant Dehumidifier MDC1000

Desiccant Technologies Group industrial desiccant dehumidifier MDC1000 designed for general purposes – room air dehumidification and process drying. The compact construction allows extended periods of operation with a minimum of maintenance. Especially suitable for low temperature and low humidity operation. Unit includes desiccant rotor, EC-fans, reactivation PTC-heater, filters and controls.

Constructional Features:

• The casing has high resistance to atmospheric corrosion and made of 1,0 mm stainless steel sheet metal; some parts made of 1,5 and 2,0 mm stainless steel in order to achieve rigidity; the panels with 20mm rock wool insulation
• Compact design and low weight of the unit
• High performance at low temperatures and low relative humidity in a room
• Optional humidistat is available as an accessory
• Microprocessor based control (option)
• Easy access to the internal components of the dehumidifier for the maintenance
• PTC-heater
• High efficiency of the washable silica gel rotor
• All components made exclusively by European manufacturers

Technical data:

Process air
Rated airflow - 1000 m3/h
Available static pressure 200 Pa

Reactivation air
Rated airflow 400 m^3/h
Available static pressure 280 Pa

Power supply
(3x400V, 50 Hz) 13 kW
Current 19 A

Miscellaneous data
Weight 155 kg
Operating temperature -30/+40°C

Max noise level
without ductworks 70dBA
Air filter EU4
IC protective class IP44
Insulation 20mm
